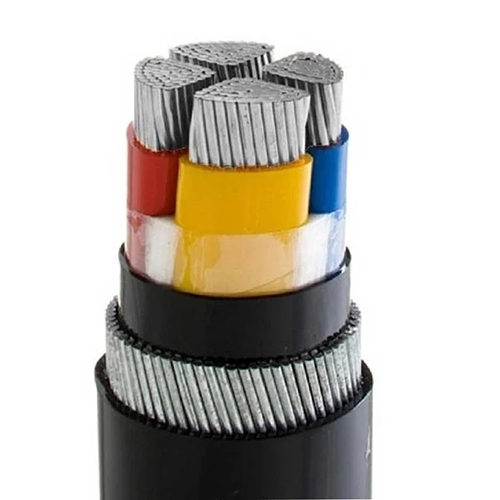

Polycab Armoured Cables

Get a Price/Quote

Polycab Armoured Cables Specification

Outer Material
PVC (Polyvinyl Chloride)

Install Type
Direct burial, duct installation, outdoor/indoor

Armour Type
Steel wire/Steel strip/Aluminium wire

Connector Size
Available in multiple sizes (custom as per requirement)

Conductor Type
Stranded/Flexible

Armored Material
Galvanized Steel/Aluminum

Conductor Shape
Round/Segmental

Standard
IS 1554/IS 7098/IEC60502

Core Number
1 to 61 cores

Features
High strength, excellent insulation, moisture-resistant, robust sheathing, flame retardant

Core Material
Copper/Aluminum

Insulation
XLPE/PVC (as specified)

Rated Temperature
-15C to +90C

Number of Conductor
Single core / Multi core (up to 61 cores)

Impedance
As per IS/IEC specifications

Conductor
Stranded copper/aluminum

Dielectiric Strength
3.5 kV for 5 minutes (as per type)

Tensile Strength
Minimum 12.5 N/mm2 for armouring

Diameter
Varies as per size and core count

Usage & Applications
Underground cable laying, power distribution networks, industrial installations

Operating Temperature
Up to 90C (continuous), 250C (short circuit)

Weight
Varies as per size and length

Cable Type
LV/MV Armoured Power Cable

Product Type
Armoured Power Cable

Length
100 meters, 500 meters, or as specified

Voltage
Up to 1100 V (1.1 kV)

Insulation Material
XLPE/PVC

Application
Power Distribution, Industrial, Underground, Construction

Conductor Material
Copper/Aluminum

Jacket Material
PVC/FRLS (Flame Retardant Low Smoke)

Storage Temperature
-20C to +70C

Connector Color
Black/Red/Blue/Custom as per core identification

Shield Material
NA (standard armoured protection)

Jacket Color
Black

Dimension (L*W*H)
Standard as per size and cores

Material
Copper/Aluminum Conductor, Steel/Aluminum Armouring, PVC/XLPE insulation

Color
Black (outer sheath)

Size
1.5 sqmm to 630 sqmm

Minimum Insulation Resistance
1 Giga Ohm/km (at 20C)

Halogen Free Option
Available on request

UV Resistance
Yes, UV stabilized outer sheath

Short Circuit Rating
Up to 250C for 5 seconds

Resistant To
Chemicals, moisture, oils and abrasion

Fire Performance
Flame retardant and low smoke emission as per IS 7098 Part II

Sheath Marking
Sequential length marking and ISI mark

Bending Radius
12 x overall diameter for multi-core cable

Packaging Type
Coil, Drum or Reel

Conductivity
High conductivity annealed copper

Earth Fault Indication
Optional

About Polycab Armoured Cables

Jump on this exclusive opportunity-Polycab Armoured Cables are available in limited stock! Designed for champions in power solutions, these virtuoso cables feature the finest high conductivity annealed copper and robust steel or aluminum armouring for maximum protection. Enjoy seamless instant checkout and secure your cables before supplies run out! With flame retardant, low-smoke emission, UV-resistance, and superior chemical, oil, and moisture resistance, these cables exemplify strength. Optional halogen-free and earth fault indication elevate safety. Multiple sizes, excellent insulation, and ISI marking guarantee premium quality for diverse applications.

Application Excellence, Machine Features & Use Case Highlights

Polycab Armoured Cables are engineered for versatility, suitable for underground cable laying, industrial installations, construction sites, and power distribution networks. With their finest high strength and robust sheathing, these cables withstand mechanical stress, moisture, and chemical exposure. Multi-core and single-core options add flexibility, while their superior insulation ensures safety in high-demand environments. Designed for both direct burial and duct installations, these cables serve as the backbone for dependable, large-scale power distribution and machine connections across commercial and industrial settings.

Sample Policy, Certifications & Payment Terms for Easy Transportation

Securing a Polycab Armoured Cable sample is convenient with our transparent sample policy-just request a quote stating your desired specification and asking price. All products are ISI and IEC certified, ensuring quality and safety during transportation. Payments can be made via multiple terms tailored for both traders and wholesalers across India. Reliable transport services offer prompt delivery, making the process smooth from order to destination, so your projects never face delays in vital cable supply.

FAQ's of Polycab Armoured Cables:

Q: How are Polycab Armoured Cables suitable for underground and industrial power distribution?

A: Polycab Armoured Cables are robustly built with steel or aluminum armouring, superior insulation, and moisture-resistant sheathing, making them ideal for underground cable laying, power distribution networks, and demanding industrial environments.

Q: What certifications and quality standards do these cables comply with?

A: These cables are ISI marked and manufactured according to IS 7098, IS 1554, and IEC 60502 standards, ensuring high quality, safety, and reliability in all installations.

Q: When is it possible to request the halogen-free or earth fault indication options?

A: The halogen-free version and earth fault indication are available upon request at the time of placing your order, supporting specialized safety requirements for sensitive projects.

Q: Where can Polycab Armoured Cables be installed?

A: They are designed for installation in a variety of outdoor and indoor settings, including direct burial, ducts, industrial premises, and construction sites, where durability and safety are paramount.

Q: What is the process for obtaining a sample and arranging transport?

A: You can request a sample by specifying your cable requirements and asking price. Reliable transport services ensure safe shipping, and our team will assist you throughout the sample ordering and delivery process.

Q: How does using Polycab Armoured Cables benefit my projects?

A: Using these cables ensures superior conductivity, fire safety, resistance to chemicals and ambient challenges, and long-term reliability, optimizing performance and reducing downtime in critical installations.
